Dashboards¶
As any Home Assistant integration you can add the dashboard of your choice.
Mike Fischer Dashboard¶
Here is some very cool example by Mike Fischer
Warning
this is a dashboard proposed by a community member and all sensors my not be installed.
Here is the yaml code to generate this lovely dashboard.
Code
cards:
- type: custom:mushroom-title-card
title: Moonraker – {{ states('sensor.moonraker_current_display_message') }}
subtitle: "{{ states('sensor.moonraker_filename') }}"
alignment: center
title_tap_action:
action: url
url_path: http://moonraker.local/
- square: false
type: grid
cards:
- type: tile
entity: sensor.moonraker_current_print_state
name: Status
show_entity_picture: false
vertical: false
color: primary
- type: tile
entity: sensor.moonraker_print_duration
name: Elapsed
color: accent
- type: tile
entity: sensor.moonraker_print_eta
name: Completion
color: green
show_entity_picture: false
vertical: false
columns: 3
- type: custom:bar-card
entity: sensor.moonraker_progress
name: Print Progress...
icon: mdi:clock-end
color: green
positions:
indicator: inside
name: inside
- square: false
type: grid
columns: 4
cards:
- type: custom:button-card
entity: button.moonraker_pause_print
color_type: icon
tap_action:
action: toggle
name: Pause
- type: custom:button-card
entity: button.moonraker_resume_print
color_type: icon
tap_action:
action: toggle
name: Resume
- type: custom:button-card
entity: button.moonraker_cancel_print
color_type: icon
tap_action:
action: toggle
name: Cancel
lock:
enabled: false
confirmation:
text: This will CANCEL the print. Are you sure?
- type: custom:button-card
entity: button.moonraker_emergency_stop
color_type: icon
color: red
tap_action:
action: toggle
name: Emergency
lock:
enabled: false
confirmation:
text: This will REBOOT the printer. Are you sure?
- type: custom:apexcharts-card
graph_span: 1h
header:
show: true
title: Printer Temperatures
show_states: true
colorize_states: true
apex_config:
chart:
height: 200px
legend:
show: false
grid:
xaxis:
lines:
show: true
borderColor: "#555"
yaxis:
- opposite: true
decimals: 0
tickAmount: 2
all_series_config:
stroke_width: 2
float_precision: 0
show:
name_in_header: true
series:
- entity: sensor.moonraker_extruder_temperature
name: Hotend
- entity: sensor.moonraker_bed_temperature
name: Bed
- entity: sensor.moonraker_raspberry_pi
name: RPi3
- entity: sensor.moonraker_mcu
name: Octopus
- entity: sensor.atc_3d_temperature
name: Chamber
- type: custom:apexcharts-card
graph_span: 1h
header:
show: true
title: Fan Speeds
show_states: true
colorize_states: true
apex_config:
chart:
height: 200px
legend:
show: false
grid:
xaxis:
lines:
show: true
borderColor: "#555"
yaxis:
- opposite: true
decimals: 0
tickAmount: 2
all_series_config:
stroke_width: 2
show:
name_in_header: true
series:
- entity: sensor.moonraker_hotend_fan
name: Hotend
- entity: sensor.moonraker_fan_speed
name: Parts
- entity: sensor.moonraker_controller_fan_front
name: Skirt Front
- entity: sensor.moonraker_controller_fan_rear
name: Skirt Rear
- type: conditional
conditions:
- entity: sensor.moonraker_current_print_state
state_not: unavailable
card:
type: picture-entity
entity: camera.moonraker_cam
camera_view: live
show_name: false
show_state: false
aspect_ratio: 4x3
- type: conditional
conditions:
- entity: sensor.moonraker_current_print_state
state_not: unavailable
card:
type: picture-entity
entity: camera.moonraker_thumbnail
camera_view: auto
show_name: false
show_state: false
BeHappy2021 Dashboard¶
Here is another example by BeHappy2021
This dashboard that uses sensor.printer_current_print_state to decide what to display.
Warning
this is a dashboard need to install custom front end add-on
Install process: You need to create the input_text helpers for job filament, total filament and total jobs. They get set by the automation. This dashboard uses the new sections feature so you can arrange the cards by drag and drop after creating them. Remember to change all the entity names to match yours - search for 3dprinter and replace all with your printer name.
Uses the following custom cards installed through HACS:

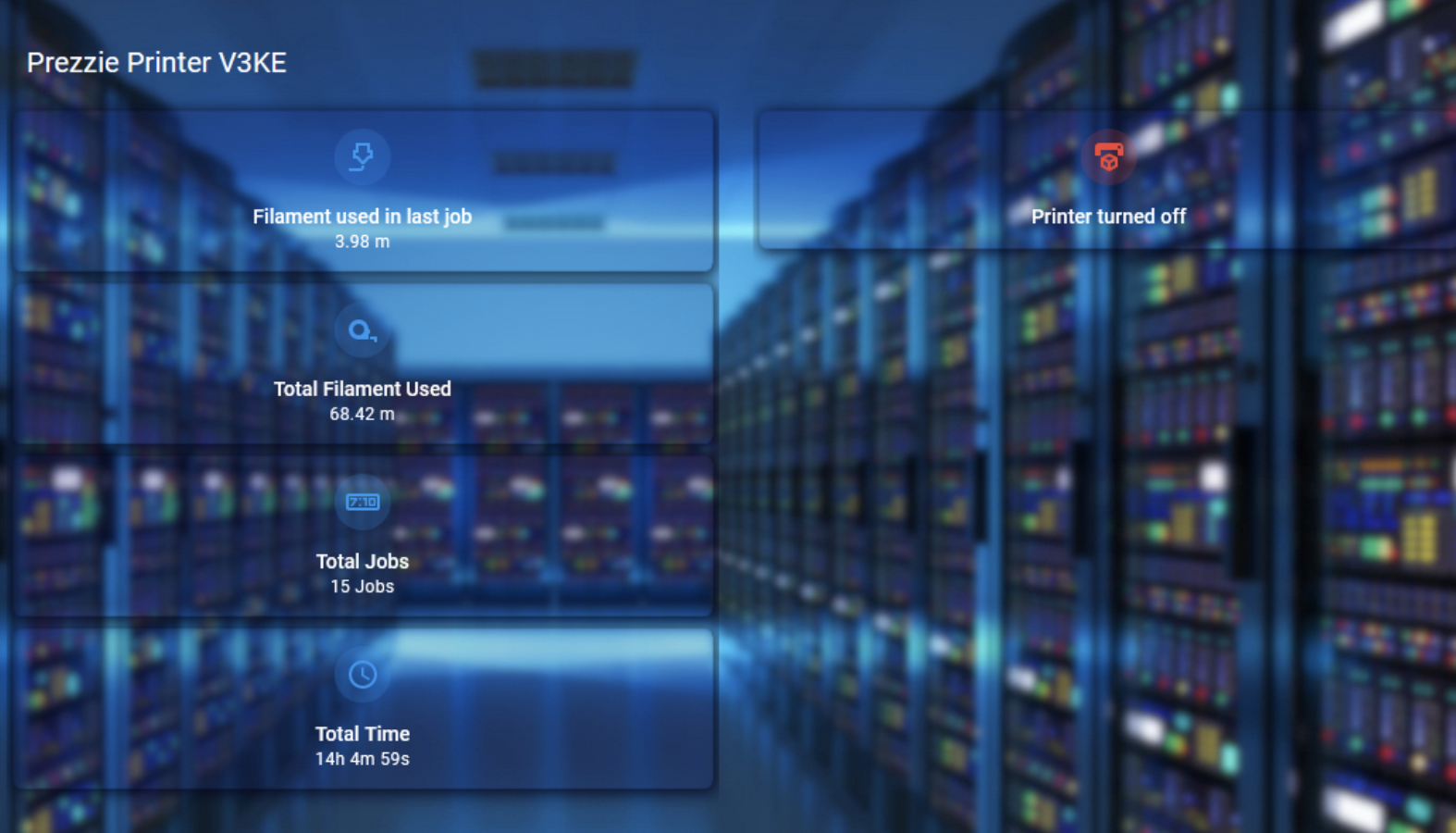

When printer is off.
When printer is standby.
When there is a print in Progress.
When print is completed.
Here is the yaml code to generate this lovely dashboard.
Code
icon: mdi:printer-3d
type: sections
sections:
icon: mdi:printer-3d
type: sections
sections:
- type: grid
cards:
- type: custom:state-switch
entity: sensor.3dprinter_current_print_state
transition: flip-x
states:
unavailable:
type: vertical-stack
cards:
- type: custom:mushroom-entity-card
entity: input_text.job_filament
name: Filament used in last job
layout: vertical
tap_action:
action: none
hold_action:
action: none
double_tap_action:
action: none
- type: custom:mushroom-entity-card
entity: input_text.total_filament
name: Total Filament Used
layout: vertical
tap_action:
action: none
hold_action:
action: none
double_tap_action:
action: none
- type: custom:mushroom-entity-card
entity: input_text.total_jobs
name: Total Jobs
layout: vertical
tap_action:
action: none
hold_action:
action: none
double_tap_action:
action: none
- type: custom:mushroom-entity-card
entity: input_text.total_time
name: Total Time
layout: vertical
tap_action:
action: none
hold_action:
action: none
double_tap_action:
action: none
standby:
type: custom:mushroom-template-card
primary: Printer is standing by
layout: vertical
tap_action:
action: url
url_path: http://moonraker_url #This will only work over LAN you need e.g Letsencrypt for access via internet
hold_action:
action: none
double_tap_action:
action: none
icon_color: yellow
icon: mdi:printer-3d
printing:
type: vertical-stack
cards:
- type: custom:mushroom-template-card
secondary: >-
Current filename - {{
states('sensor.3dprinter_filename') }}
fill_containter: true
multiline_secondary: true
layout: vertical
tap_action:
action: url
url_path: http://moonraker_url
hold_action:
action: none
double_tap_action:
action: none
icon_color: green
icon: mdi:printer-3d
- type: horizontal-stack
cards:
- type: custom:mushroom-entity-card
entity: sensor.3dprinter_current_print_state
name: Status
layout: vertical
tap_action:
action: none
hold_action:
action: none
double_tap_action:
action: none
- type: custom:mushroom-entity-card
entity: sensor.3dprinter_print_duration
name: Elapsed
layout: vertical
tap_action:
action: none
hold_action:
action: none
double_tap_action:
action: none
- type: custom:mushroom-entity-card
entity: sensor.3dprinter_print_eta
name: Completion
layout: vertical
tap_action:
action: none
hold_action:
action: none
double_tap_action:
action: none
- type: custom:mushroom-entity-card
entity: binary_sensor.3dprinter_filament_sensor
name: Filament
layout: vertical
tap_action:
action: none
hold_action:
action: none
double_tap_action:
action: none
complete:
type: custom:mushroom-template-card
Primary: Printing has finished
layout: vertical
fill_containter: true
tap_action:
action: url
url_path: http://moonraker_url
hold_action:
action: none
double_tap_action:
action: none
icon_color: green
icon: mdi:printer-3d
- type: custom:state-switch
entity: sensor.3dprinter_current_print_state
transition: flip-x
states:
printing:
type: vertical-stack
cards:
- type: custom:bar-card
name: Print progress..
icon: mdi:clock-end
color: blue
entity: sensor.3dprinter_progress
- type: custom:bar-card
name: Fan speed
icon: mdi:fan
color: blue
entity: sensor.3dprinter_nozzle_fan
- type: tile
name: Filament used
tap_action:
action: none
icon_tap_action:
action: none
entity: sensor.3dprinter_filament_used
- type: picture-entity
show_state: false
show_name: false
camera_view: auto
name: Thumbnail
tap_action:
action: none
icon_tap_action:
action: none
entity: camera.3dprinter_thumbnail
complete:
type: vertical-stack
cards:
- type: custom:bar-card
name: Print progress..
icon: mdi:clock-end
color: blue
entity: sensor.3dprinter_current_print_state
- type: tile
name: Filament used
tap_action:
action: none
icon_tap_action:
action: none
entity: input_text.job_filament
standby:
type: vertical-stack
cards:
- type: custom:mushroom-template-card
primary: Job progress will appear here
layout: vertical
tap_action:
action: url
url_path: http://moonraker_url
hold_action:
action: none
double_tap_action:
action: none
icon_color: yellow
icon: mdi:printer-3d
- type: tile
name: Filament used in last job
vertical: true
tap_action:
action: none
icon_tap_action:
action: none
entity: input_text.job_filament
title: 3D Printer
- type: grid
cards:
- type: custom:state-switch
entity: sensor.3dprinter_current_print_state
transition: flip-x
states:
unavailable:
type: custom:mushroom-template-card
primary: Printer turned off
layout: vertical
tap_action:
action: none
hold_action:
action: none
double_tap_action:
action: none
icon_color: red
icon: mdi:printer-3d
printing:
type: horizontal-stack
cards:
- type: custom:button-card
name: Pause
tap_action:
action: toggle
entity: button.3dprinter_pause_print
- type: custom:button-card
name: Resume
tap_action:
action: toggle
entity: button.3dprinter_resume_print
- type: custom:button-card
name: Cancel
tap_action:
action: toggle
entity: button.3dprinter_cancel_print
- type: custom:button-card
name: Emergency
tap_action:
action: toggle
color: red
confirmation:
text: This will REBOOT the printer. Are you sure?
entity: button.3dprinter_emergency_stop
standby:
type: custom:mushroom-template-card
primary: Controls will appear here
layout: vertical
tap_action:
action: url
url_path: http://moonraker_url
hold_action:
action: none
double_tap_action:
action: none
icon_color: yellow
icon: mdi:printer-3d
- square: true
type: grid
cards:
- type: conditional
conditions:
- condition: state
entity: sensor.3dprinter_current_print_state
state: printing
card:
type: custom:apexcharts-card
graph_span: 1h
span:
start: hour
offset: "-10min"
header:
show: true
title: Temperatures
show_states: true
colorize_states: true
now:
show: true
label: Now
color: "#00ff00"
all_series_config:
show:
legend_value: false
float_precision: 0
apex_config:
legend:
show: false
series:
- entity: sensor.3dprinter_extruder_temperature
name: Nozzle
opacity: 0.4
- entity: sensor.3dprinter_extruder_target
name: Nozzle target
opacity: 0.4
- entity: sensor.3dprinter_bed_temperature
name: Bed
opacity: 0.4
- entity: sensor.3dprinter_bed_target
name: Bed target
opacity: 0.4
- entity: sensor.3dprinter_mcu_temp
name: MCU
opacity: 0.4
- type: conditional
conditions:
- condition: state
entity: sensor.3dprinter_current_print_state
state: standby
card:
type: custom:mushroom-template-card
primary: Temperatures will appear here
layout: vertical
tap_action:
action: url
url_path: http://moonraker_url
hold_action:
action: none
double_tap_action:
action: none
icon_color: yellow
icon: mdi:printer-3d
columns: 1
title: " "
cards: []
Automation to set input_text values
alias: Set printer variables on start up.
description: ""
trigger:
- platform: state
entity_id:
- sensor.3dprinter_printer_state
to: ready
for:
hours: 0
minutes: 1
seconds: 0
from: null
- platform: state
entity_id:
- sensor.3dprinter_current_print_state
from: printing
for:
hours: 0
minutes: 1
seconds: 0
condition: []
action:
- service: input_text.set_value
data:
value: >-
{{
states.sensor.3dprinter_totals_filament_used.state_with_unit
}}
target:
entity_id: input_text.total_filament
- service: input_text.set_value
data:
value: "{{ states.sensor.3dprinter_totals_jobs.state_with_unit }}"
target:
entity_id: input_text.total_jobs
- service: input_text.set_value
data:
value: >-
{{ states.sensor.3dprinter_totals_print_time.state_with_unit
}}
target:
entity_id: input_text.total_time
Automation for when printing is finished - also sends a notification via the mobile app. I've set it to be 98% completion as sometimes it doesn't fire at 99 or 100% if it is a quick print.
alias: Printer finished
description: ""
trigger:
- platform: state
entity_id:
- sensor.3dprinter_progress
to: "98"
condition: []
action:
- service: input_text.set_value
data:
value: "{{ states.sensor.3dprinter_filament_used.state_with_unit }}"
target:
entity_id: input_text.job_filament
- service: notify.mobile_app
data:
message: TTS
title: Printing complete
data:
tts_text: Print job is complete
- service: notify.mobile_app
data:
title: 🖨 Printer finished
message: Printer job has finished
data: {}
mode: single
Optional automation to reload the automation when you turn on the printer or it finishes printing:
alias: Reload Printer data
description: ""
trigger:
- platform: state
entity_id:
- sensor.3dprinter_printer_state
from: unavailable
- platform: state
entity_id:
- sensor.3dprinter_current_print_state
from: printing
condition: []
action:
- service: homeassistant.reload_config_entry
data: {}
target:
device_id: #whatever your printer device_id is
